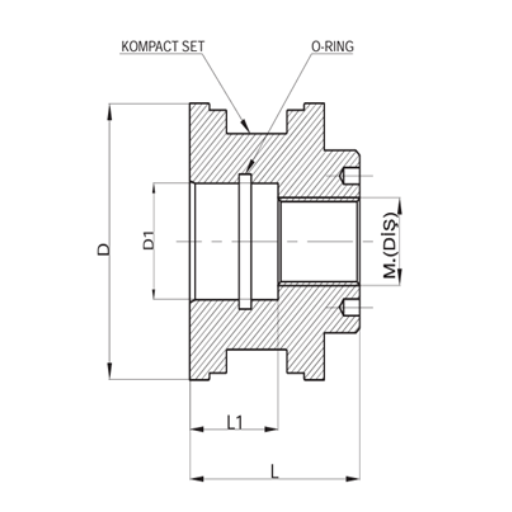

Hidrolik Silindir Vidalı Tip Çelik Piston

ÜRÜN KODU	D	D1	L	L1	DİŞ	KOMPAKT SET	O-RING
NR-PV-040	40	20	45	22,5	18×1,5	40x32x15,5×3,20	20,22×3,53
NR-PV-045	45	20	45	22,5	18×1,5	45x35x16,40×6,35	20,22×3,53
NR-PV-050	50	25	45	22,5	20×2	50x38x20,5×4,20	24,99×3,53
NR-PV-055	55	25	45	22,5	20×2	55x39x20,5×3,10	24,99×3,53
NR-PV-060	60	30	45	22,5	27×2	60x48x20,5×3,10	29,75×3,53
NR-PV-063	63	30	45	22,5	27×2	63x51x20,5×4,20	29,75×3,53
NR-PV-065	65	30	45	22,5	27×2	65x49x20,5×3,10	29,75×3,53
NR-PV-070	70	30	45	22,5	27×2	70x58x20,5×4.20	29,75×3,53
NR-PV-075	75	30	50	25	27×2	75x55x22,4×6,35	29,75×3,53
NR-PV-080	80	35	50	25	30×2	80x66x22,4×5,20	34,52×3,53
NR-PV-085	85	40	50	25	35×2	85x65x22,4×6,35	39,70×3,53
NR-PV-090	90	40	50	25	35×2	90x76x22,4×5,20	39,70×3,53
NR-PV-100	100	45	50	25	40×2	100x86x22,4×5,20	45×4
NR-PV-110	110	45	50	25	40×2	110x96x22,4×5,20	45×4
NR-PV-115	115	45	50	25	40×2	115x101x22,4×5,20	45×4
NR-PV-120	120	50	50	25	45×2	120x106x22,4×5,20	50×4
NR-PV-125	125	50	60	30	45×2	125x103x26,5×5,10	50×4
NR-PV-130	130	60	60	30	50×2	130x105x25,4×6,35	60×4
NR-PV-140	140	60	60	30	55×2	140x123x26,5×7,20	60×4
NR-PV-150	150	65	60	30	60×2	150x125x25,4×6,35/1	65×4
NR-PV-160	160	65	60	30	60×2	160x143x26,5×7,20	65×4
NR-PV-170	170	70	65	30	65×2	170x145x25,4×12,70	70×4
NR-PV-180	180	75	60	30	70×2	180x163x26,5×7,20	75×4
NR-PV-190	190	85	65	30	75×2	190x165x22,4×12,7	85×4
NR-PV-200	200	80	70	30	75×2	200x175x25,40×12,70/1	80×5
NR-PV-220	220	90	70	30	85×2	220x190x35,40×6,35/1	90×5
NR-PV-230	230	100	70	30	95×2.5	230x205x25.4×12.70	100×5
NR-PV-250	250	100	70	30	95×2.5	250x225x25,40×12,70	100×5
