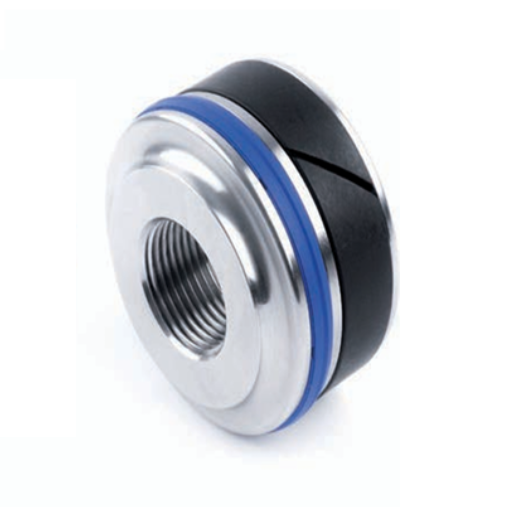

Hidrolik Silindir Tek Etkili Vidalı Tip Çelik Piston

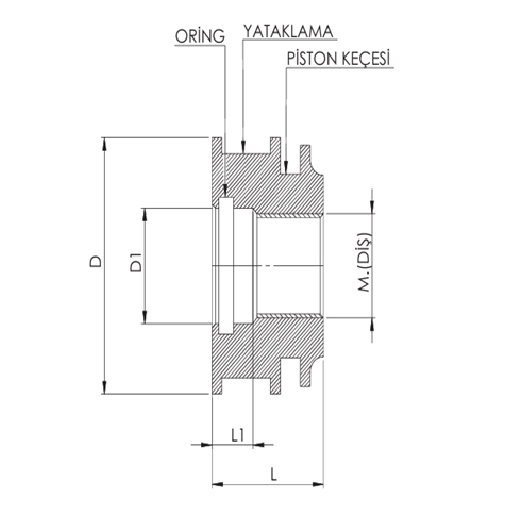

ÜRÜN	D	D1	L	L1	DİŞ	PİSTON KEÇESİ	ORİNG	YATAKLAMA
NR-PV-T-040	40	20	35	15	18×1,5	40X29X4,2	20,22X3,53	35X40X15
NR-PV-T-050	50	25	35	15	20×2	50X39X4,2	24,99X3,53	45X50X15
NR-PV-T-060	60	30	35	15	27×2	60X49X4,2	29,75X3,53	55X60X15
NR-PV-T-063	63	30	35	15	27×2	63X47,5X6,3	29,75X3,53	58X63X15
NR-PV-T-070	70	30	35	15	27×2	70X54,5X6,3	29,75X3,53	65X70X15
NR-PV-T-080	80	35	35	15	30×2	80X64,5X6,3	34,52X3,53	75X80X15
NR-PV-T-090	90	40	35	15	35×2	90X74,5X6,3	39,70X3,53	85X90X15
NR-PV-T-100	100	45	35	15	40×2	100X84,5X6,3	45X4	95X100X15
