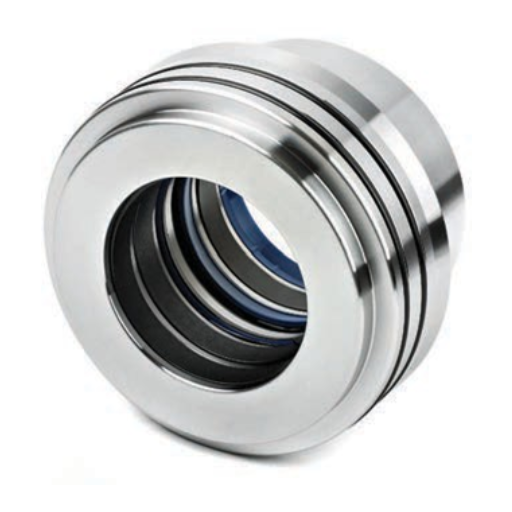

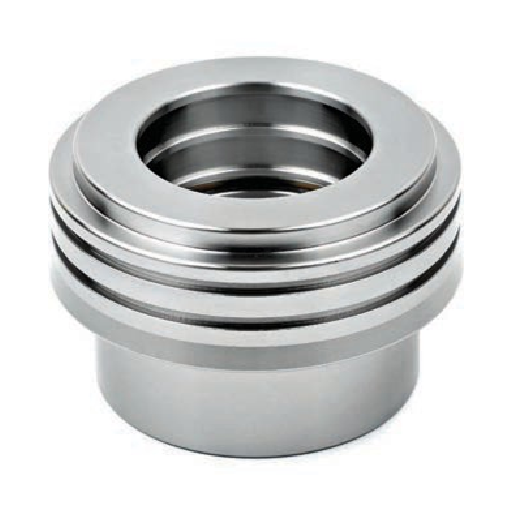

Hidrolik Silindir Çakma Tip Kepler

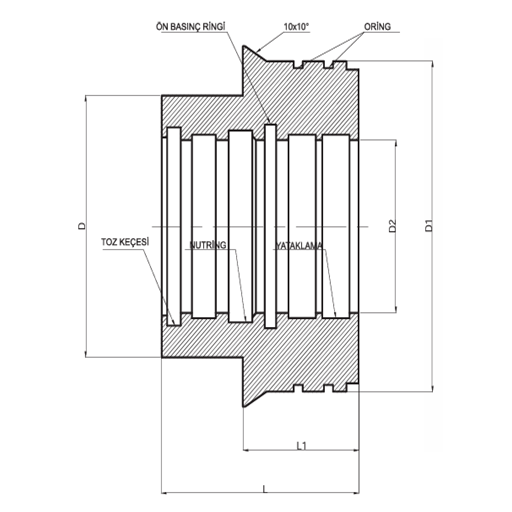

ÜRÜN KODU	D	D1	D2	L	L1	YATAKLAMA	NUTRING	ÖN BASINÇ RİNGİ	TOZ KEÇESİ	O-RING
NR-CK-140×080	125	140	80	105	55	80x85x15-3	80x90x12	80×95,5×6,3	80x92x7/12	132×4
NR-CK-160×090	130	160	90	105	55	90x95x15-3	90x100x12	90×105.5×6.3	90x102x7/12	152×4
NR-CK-160×100	130	160	100	105	55	100x105x15-3	100x115x12	100×115.5×6.3	100x112x7/12	152×4
NR-CK-160×110	130	160	110	105	55	110x115x15-3	110x125x12	110×125.5×6.3	110x122x7/12	152×4
NR-CK-170×110	140	170	110	105	55	110x115x15-3	110x125x12	110×125.5×6.3	110x122x7/12	162×4
NR-CK-180×090	150	180	90	105	55	90x95x15-3	90x100x12	90×105.5×6.3	90x102x7/12	172×4
NR-CK-180×095	150	180	95	105	55	95x100x15-3	95x105x12	95×110.5×6.3	95x107x7/12	172×4
NR-CK-180×100	150	180	100	105	55	100x105x15	100x115x12	100×115.5×6.3	100x112x7/12	172×4
NR-CK-180×110	150	180	110	105	55	110x115x15-3	110x125x12	110×125.5×6.3	110x122x7/12	172×4
NR-CK-180×120	150	180	120	105	55	120x125x15-3	120x135x15	120×135.5×6.3	120x132x7/12	172×4
NR-CK-200×090	160	200	90	105	55	90x95x15-3	90x100x12	90×105.5×6.3	90x102x7/12	192×4
NR-CK-200×100	160	200	100	105	55	100x105x15	100x115x12	100×115.5×6.3	100x112x7/12	192×4
NR-CK-200×110	160	200	110	105	55	110x115x15-3	110x125x12	110×125.5×6.3	110x122x7/12	192×4
NR-CK-200×120	160	200	120	105	55	120x125x15-3	120x135x15	120×135.5×6.3	120x132x7/12	192×4
NR-CK-200×140	160	200	140	105	55	140x145x15-3	140x160x15	140×155.5×6.3	140x152x7/12	192×4
NR-CK-220×100	180	220	100	105	55	100x105x15	100x115x12	100×115.5×6.3	100x112x7/12	212×4
NR-CK-220×110	180	220	110	105	55	110x115x15-3	110x125x12	110×125.5×6.3	110x122x7/12	212×4
NR-CK-220×120	180	220	120	105	55	120x125x15-3	120x135x15	120×135.5×6.3	120x132x7/12	212×4
NR-CK-220×125	180	220	125	105	55	125x130x15-3	125x145x15	125x140x6,3	125x137x7/12	212×4
NR-CK-230×110	190	230	110	105	55	110x115x15-3	110x125x12	110×125.5×6.3	110x122x7/12	222×4
NR-CK-230×120	190	230	120	105	55	120x125x15-3	120x135x15	120×135.5×6.3	120x132x7/12	222×4
NR-CK-230×130	190	230	130	105	55	130x135x15-3	130x150x15	130×145.5×6.3	130x142x7/12	222×4
NR-CK-230×140	190	230	140	105	55	140x145x15-3	140x160x15	140×155.5×6.3	140x152x7/12	222×4
NR-CK-250×110	200	250	110	105	55	110x115x15-3	110x125x12	110×125.5×6.3	110x122x7/12	242×4
NR-CK-250×120	200	250	120	105	55	120x125x15-3	120x135x15	120×135.5×6.3	120x132x7/12	242×4
NR-CK-250×130	200	250	130	105	55	130x135x15-3	130x150x15	130×145.5×6.3	130x142x7/12	242×4
NR-CK-250×140	200	250	140	105	55	140x145x15-3	140x160x15	140×155.5×6.3	140x152x7/12	242×4
NR-CK-250×150	200	250	150	105	55	150x155x15-3	150x170x15	–	150x162x7/12	242×4
NR-CK-250×160	200	250	160	105	55	160x165x15-3	160x180x15	–	160x172x7/12	242×4
